About Building & Construction Making Line
We engineer robust, high-output roll forming lines for the demanding construction industry. Our solutions transform galvanized steel and other materials into durable structural components, from ceiling grids to wall panels. Built for reliability, our machines ensure the production of precise, weather-resistant profiles that meet stringent industry standards.

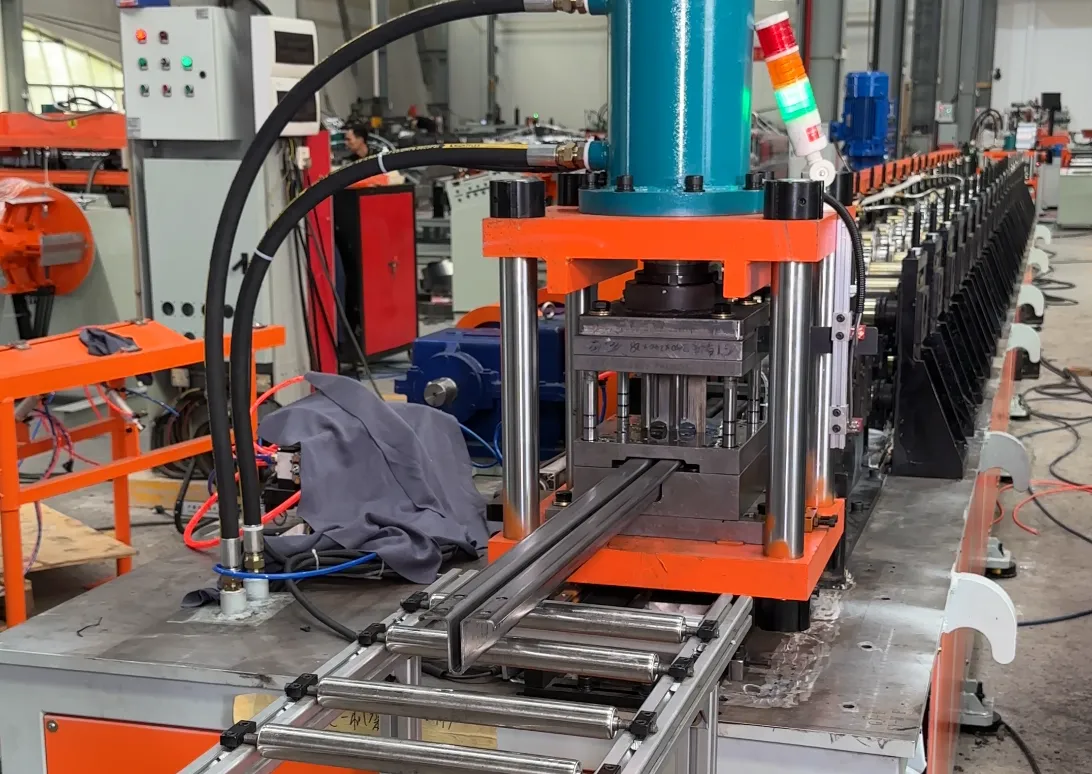

Door & Elevator Guide Rail Roll Forming Machine
ARMDAX specialized roll forming machine is engineered to produce high-tolerance guide rails for both industrial doors and elevator systems. It ensures perfect profile consistency, essential for reliable, friction-free movement and long-term safety.

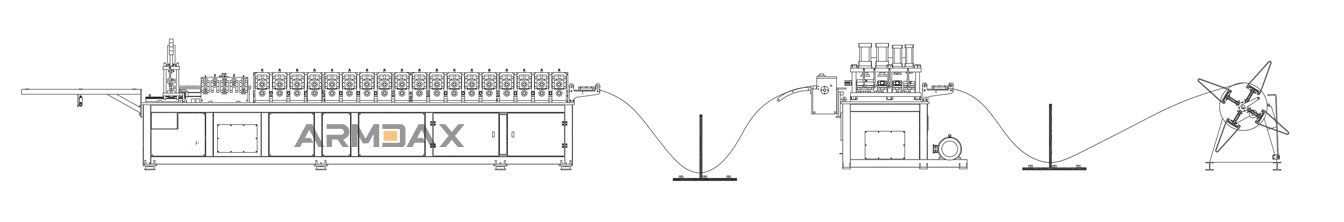

Automated Cold Roll Forming Line Process

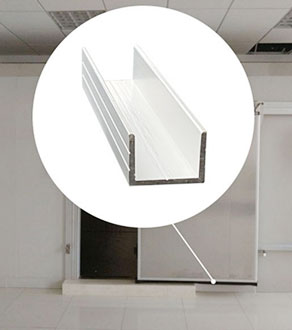

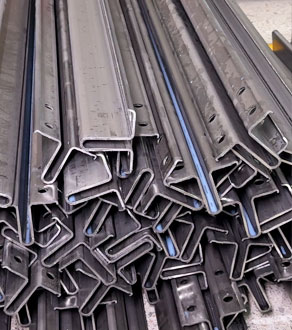

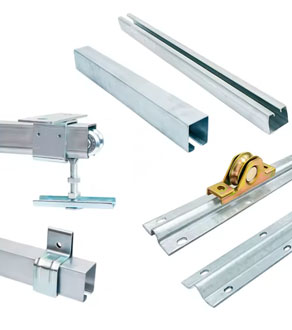

Show the Elevator & Door Guide Rails Cases

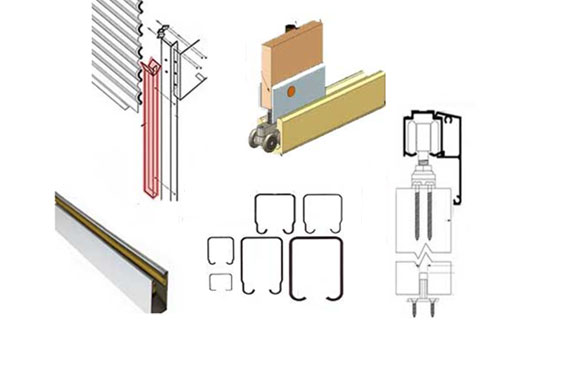

We can customize according to your requirements based on the load-bearing capacity, dimensions, and specifications needed for door & elevator guide rails. Here is a showcase of customizations we have made for guide the factories.
Where Roll Forming Meets Uncompromising Performance
Our production lines are not just assemblies of standard parts; they are integrated systems featuring advanced technologies designed to maximize your productivity, flexibility, and profitability.

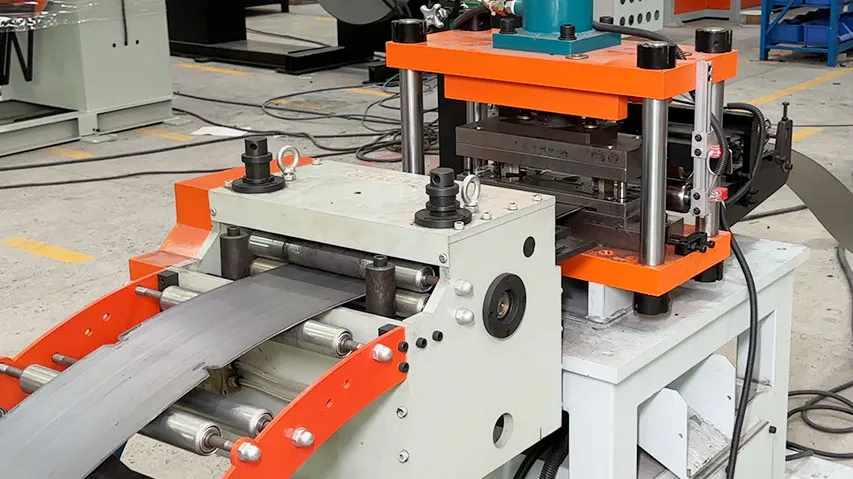

Pre-punching and Leveling
Before a single bend is formed, precision is already being built into your guide rails. Our integrated Pre-Punching and Leveling System is the unsung hero of the roll forming line, setting the stage for flawless final products. Holes in the Right Place, Every Time: The servo-driven pre-punching station creates clean, burr-free holes for mounting bolts, connectors, or safety brackets before the profile is formed. This ensures:

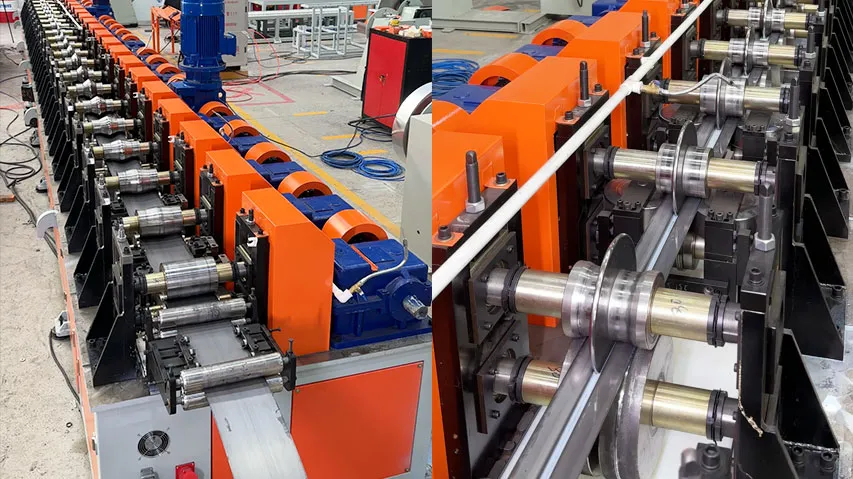

Precision Roll Forming System
Critical components are manufactured to the highest standards. Rollers are precision-machined on CNC lathes. Main shafts, are made from Cr12MoV alloy steel, tempered and precision-ground for maximum rigidity. The main frame side plates are machined from solid steel plates in a single setup on a CNC machining center to ensure perfect alignment. This robust construction guarantees the machine's longevity and reliability for years of demanding operation. According to the design drawings, implement the rolling process to achieve the preliminary product shape of elevator guide rails.

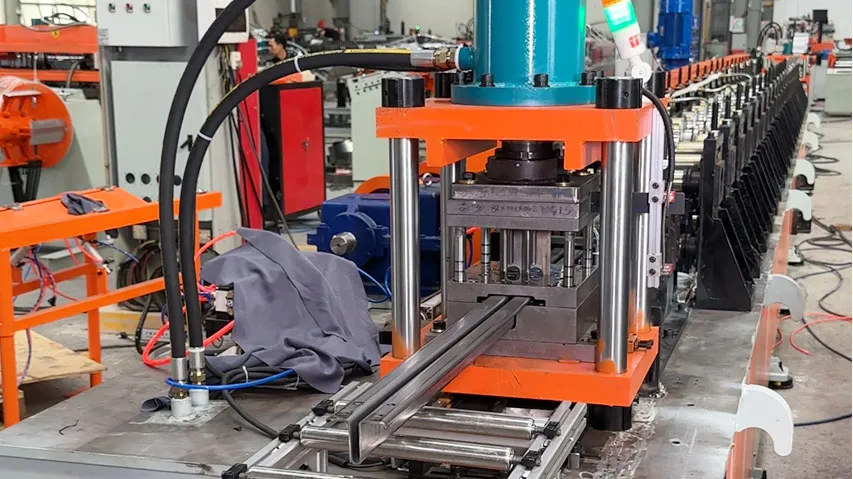

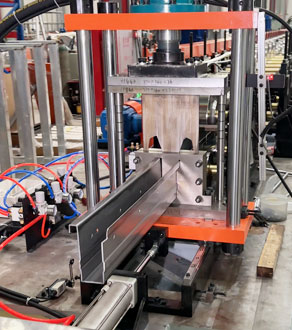

Automated Cutting For Guide Rail Machine
The automated cutting system is the critical stage in a elevator guide rail roll forming line, ensuring each guide rail is perfectly sized and ready for installation. The cutting unit synchronizes its movement with the continuously advancing profile, making a clean, burr-free cut without stopping the production line. This eliminates bottlenecks and maximizes throughput.
Engineered for Peak
Performance and Precision
Every component and parameter of our production line is designed and specified to deliver consistent, high-quality output.
| Product Material： | Material Thickness： |
| Product Width Range： | Margin of error： |
| Drive System： | Form speed： |
| Control System： | Roller material： |
Download Full Technical ProposalFrom Steel Coil to Cable Trays
100,000 +
Success Cases
Ready to Optimize Your Production?
FAQS
Q: What is the maximum speed and output of your machines?
A：
Armdax roll forming machines have a line max speed up to 35 meters per minute. The actual output depends on the profile complexity and operator efficiency.
Q: What kind of control system do you use?
A：
We use internationally renowned PLC systems (like Siemens or Mitsubishi) with a user-friendly touchscreen interface. This allows for precise control over speed, length, and production count.
