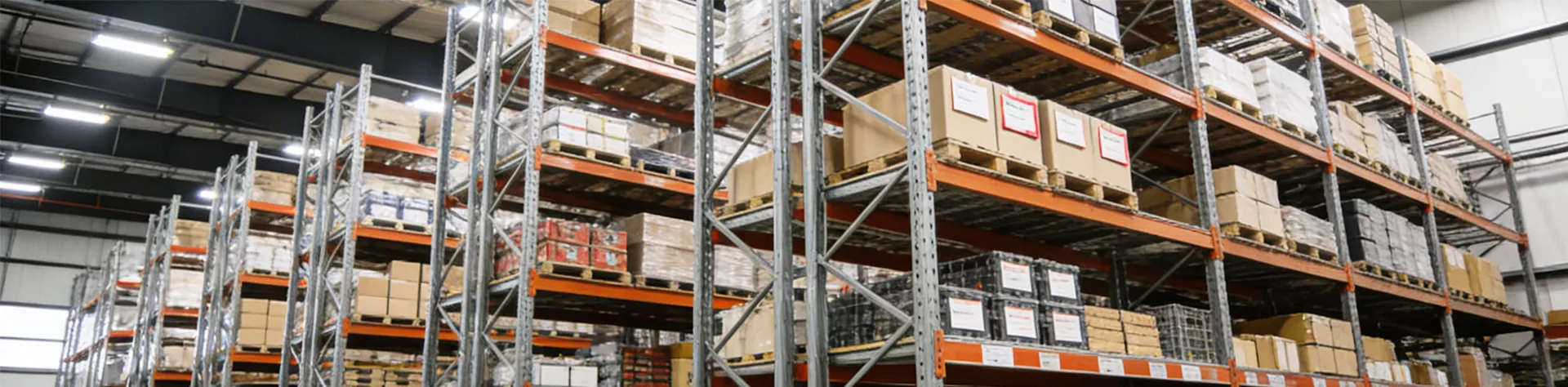

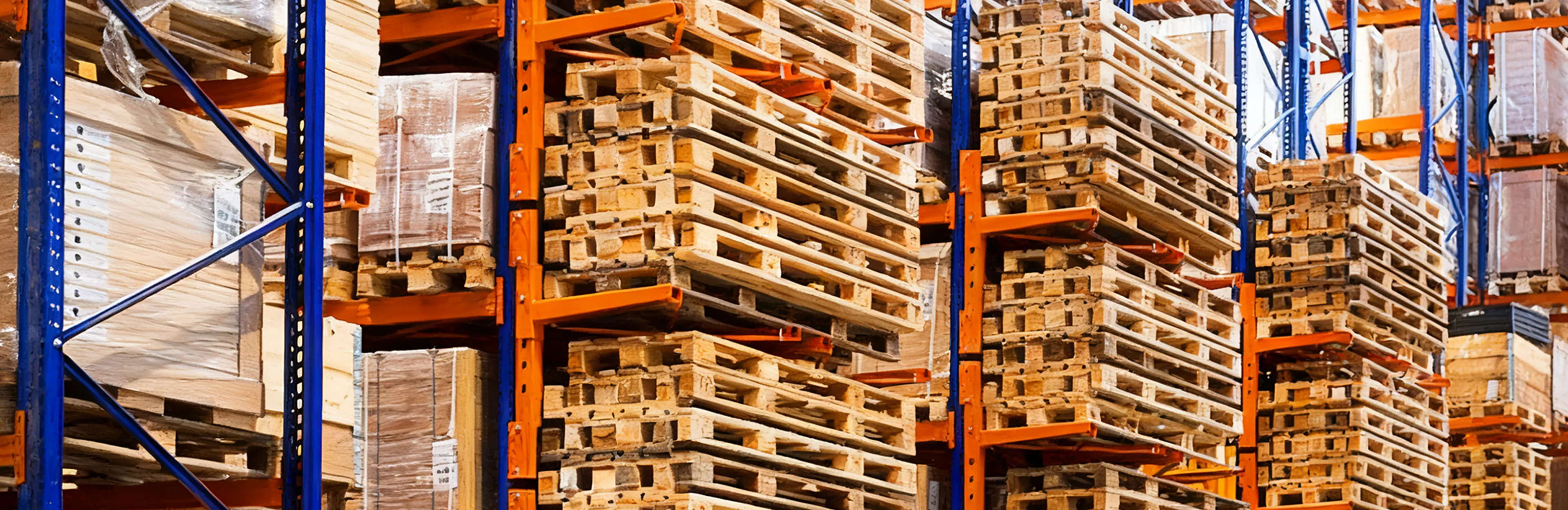

About Racking & Shelving Machine

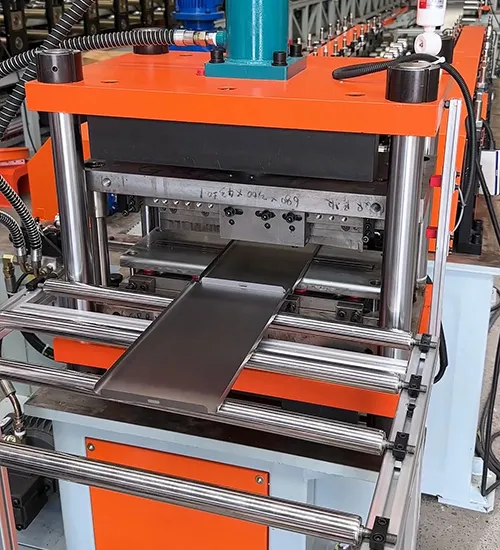

ARMDAX design and manufacture turnkey roll forming lines for manufacturing shelf panels , rack uprights，P-beams and Bracings. Our systems integrate Uncoiling feeding →leveling →servo feeding -punching system →roll forming-automatic cutting - flanging - finished product ，to produce a wide range of profiles, from heavy-duty industrial racks to retail shelving. Achieve high-speed production, exceptional precision, and rapid changeovers with robust, automated solutions engineered for maximum uptime and profitability.
Customize an automated shelf upright production line for you
We design and build fully automated shelf post production lines tailored precisely to your business. From roll forming the initial profile to precision punching and notching, our integrated systems handle it all with unmatched speed and accuracy.
Automated Roll Forming Production Line Process
What type of shelf pillar do you need?
We can customize according to your requirements based on the load-bearing capacity, dimensions, and specifications needed for shelving columns. Here is a showcase of shelving column customizations we have made for shelving factories.

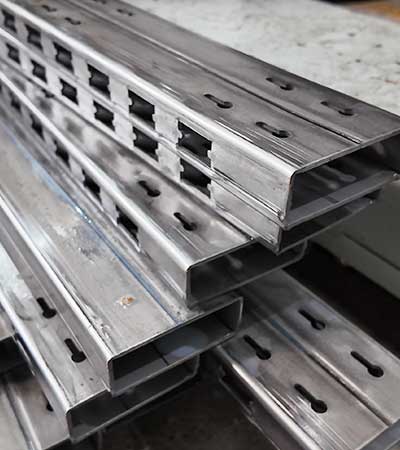

Super market shelf uprights
Super market shelf upright

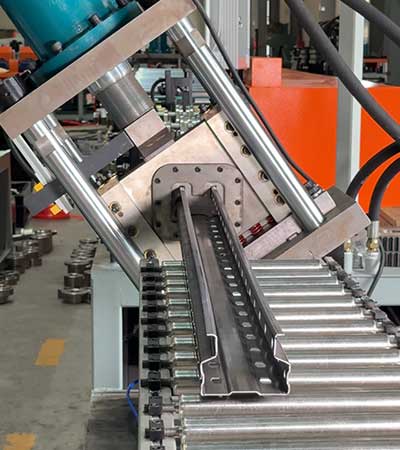

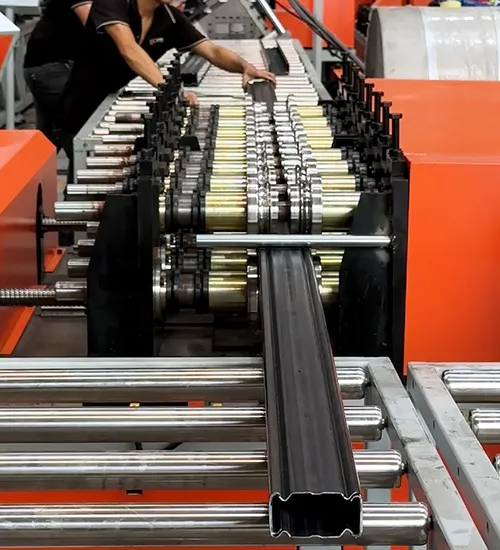

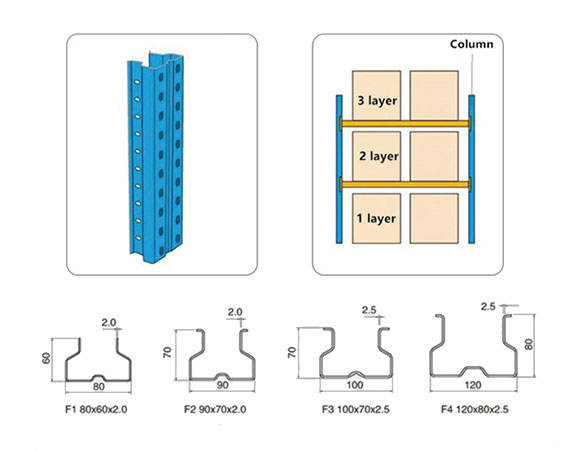

Heavy-duty shelf upright

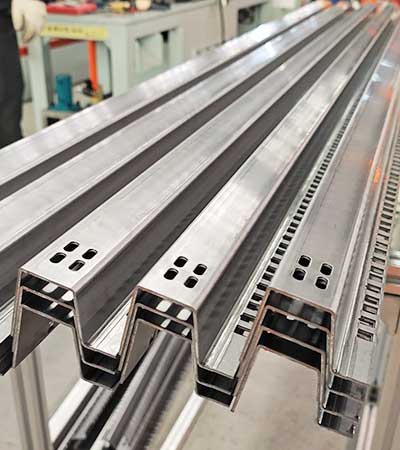

Shelf upright post

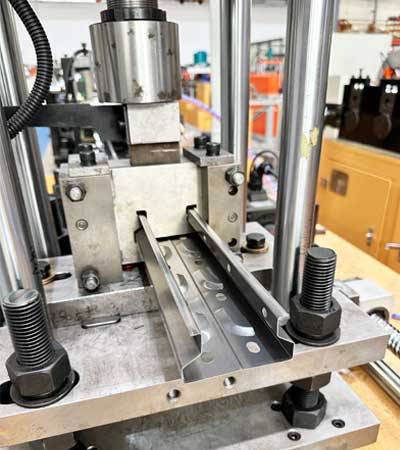

Butterfly hole columns
Technology That Drives Your Competitive Edge
Our production lines are not just assemblies of standard parts; they are integrated systems featuring advanced technologies designed to maximize your productivity, flexibility, and profitability.

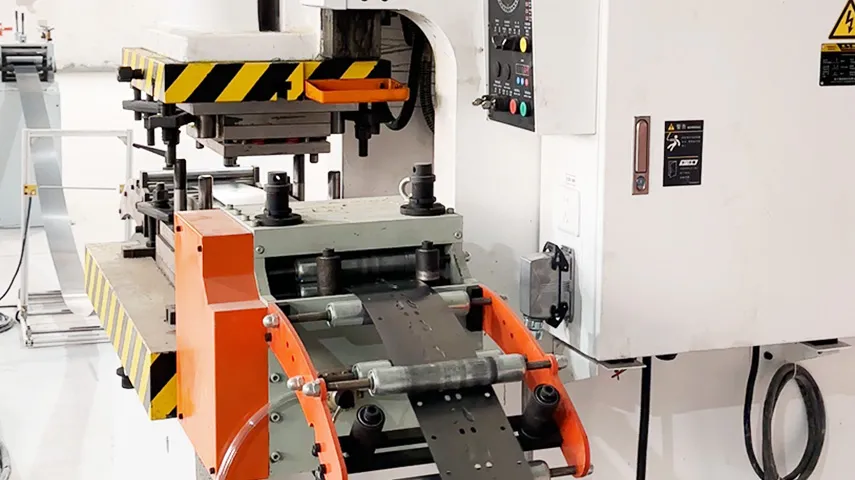

High Speed Punching System
Our integrated high-speed punching technology is the game-changer your line needs, delivering unmatched competitive advantages: Drastically reduce part cycle times. Achieve more hits per minute and maximize your output like never before. Ensure every hole, notch, or emboss is perfectly placed, part after part. Eliminate costly errors and achieve flawless product consistency. And seamlessly integrated with your roll forming line, it enables continuous, uninterrupted production.

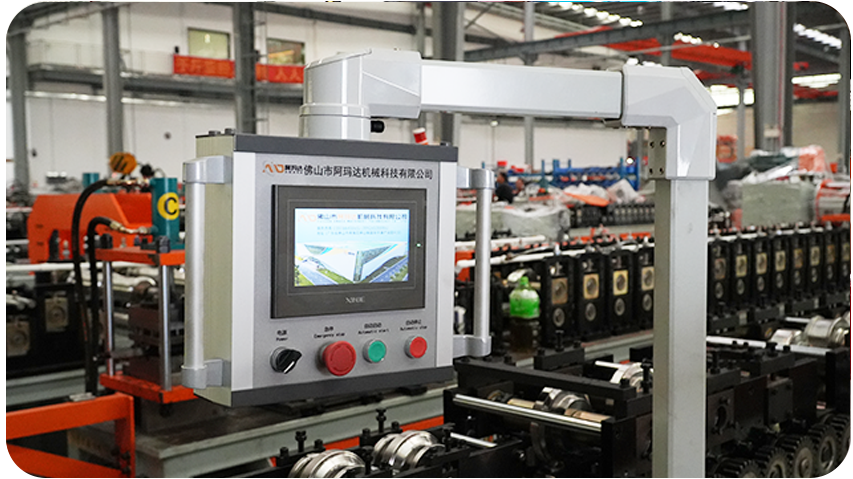

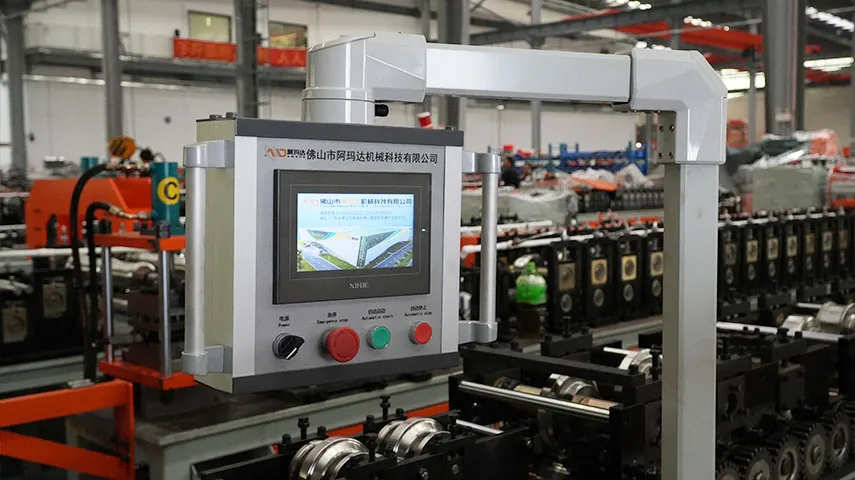

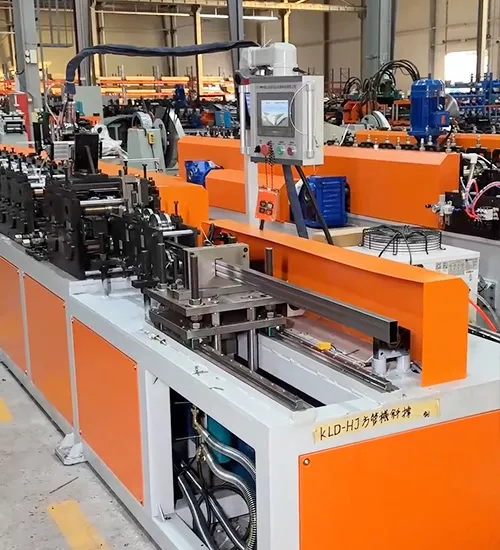

Fully Integrated Intelligent Control System
The entire line is controlled by a central PLC, managed through an intuitive HMI touch screen. All production parameters—including length, quantity, and punching patterns—are stored as recipes and can be recalled with a single touch. The system provides real-time diagnostics and production data tracking.Simplify operations and reduce reliance on highly skilled operators. The user-friendly interface minimizes the learning curve and reduces the chance of human error, ensuring consistent, high-quality output regardless of the operator. Faster job setup and real-time monitoring lead to increased overall equipment effectiveness (OEE).

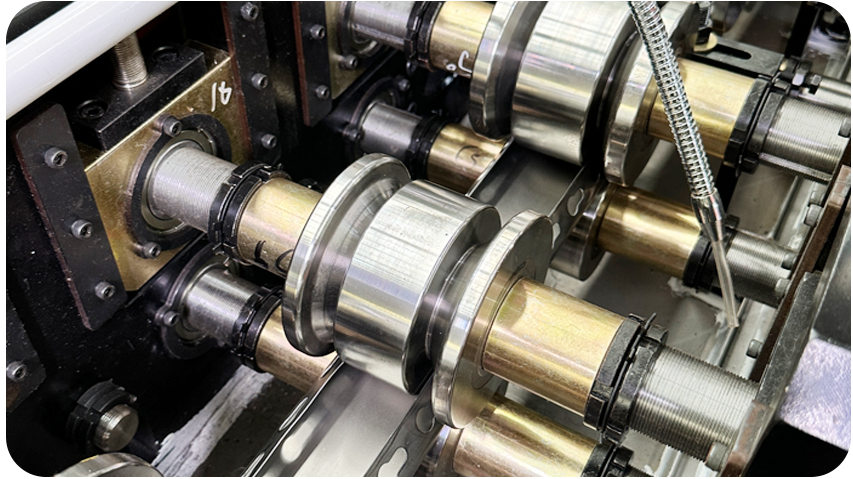

Uncompromising Precision in Manufacturing

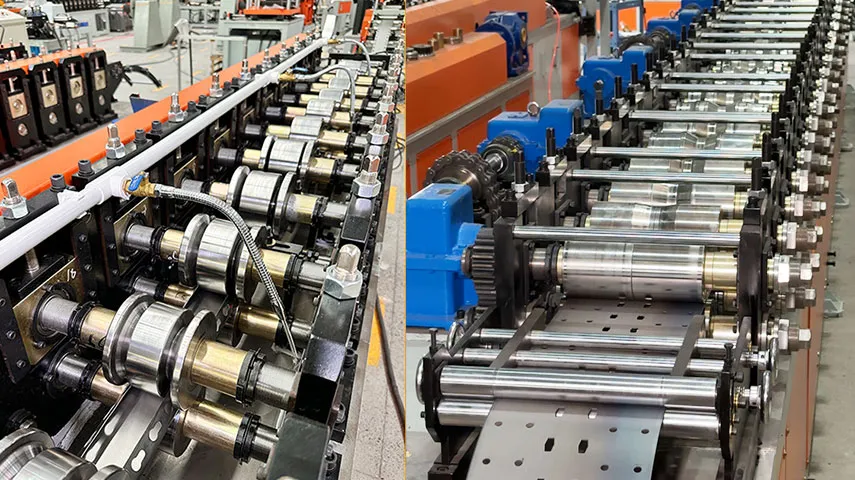

Critical components are manufactured to the highest standards. Rollers are precision-machined on CNC lathes. Main shafts, are made from 40Cr alloy steel, tempered and precision-ground for maximum rigidity. The main frame side plates are machined from solid steel plates in a single setup on a CNC machining center to ensure perfect alignment. This robust construction guarantees the machine's longevity and reliability for years of demanding operation. It ensures that the line maintains its production tolerances （control at ± 0.3 mm） over its entire lifecycle, producing consistently high-quality end-products that protect your brand's reputation and reduce costly rejects or rework.
Engineered for Peak
Performance and Precision
Every component and parameter of our production line is designed and specified to deliver consistent, high-quality output.
| Product Material： | Material Thickness： |
| Product Width Range： | Margin of error： |
| Drive System： | Form speed： |
| Control System： | Roller material： |
Download Full Technical ProposalFrom Steel Coil to Shelf Panel
100,000 +
Success Cases

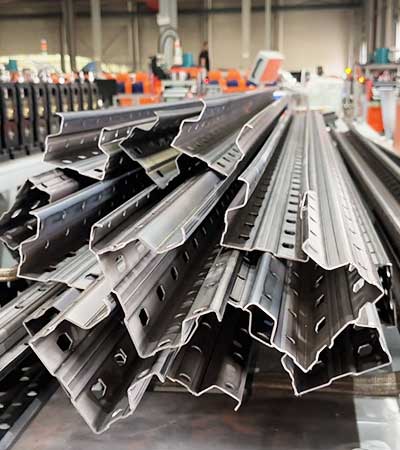

Finished column products
Finished column products Finished column products
Finished column products
Finished column products
Ready to Optimize Your Production?
FAQS
Q: Do you provide installation and training?
A：
Yes, we provide detailed installation manuals and video guides. We also offer optional overseas engineer dispatch for on-site installation and training, with all costs (travel, accommodation) quoted separately.
Q: What is your warranty policy?
A：
We provide warranty service within 1 year, for wearing parts, free replacement within half a year.Detailed warranty terms are provided in our contract.
