About Racking & Shelving Machine
ARMDAX design and manufacture turnkey roll forming lines for manufacturing shelf panels , rack uprights，P-beams and Bracings. Our systems integrate Uncoiling feeding →leveling →servo feeding -punching system →roll forming-automatic cutting - flanging - finished product ，to produce a wide range of profiles, from heavy-duty industrial racks to retail shelving. Achieve high-speed production, exceptional precision, and rapid changeovers with robust, automated solutions engineered for maximum uptime and profitability.

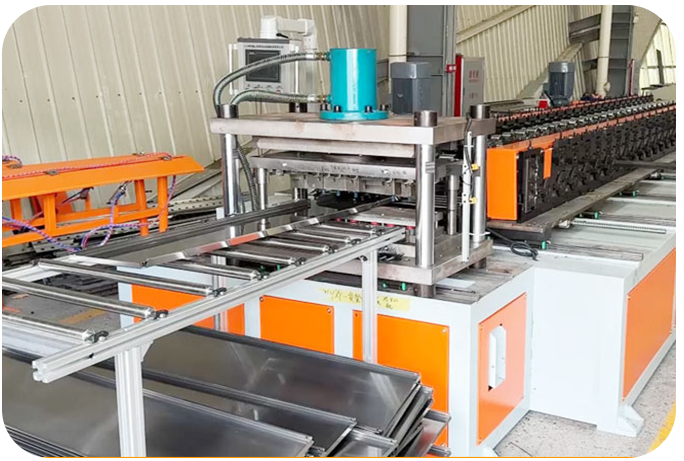

Fully Automated Shelving Panel Production Line for High-Volume Manufacturing
Achieve Consistent Quality and High Throughput with a Robust, PLC-Controlled Roll Forming System, Engineered for Continuous, High-Speed Operation.

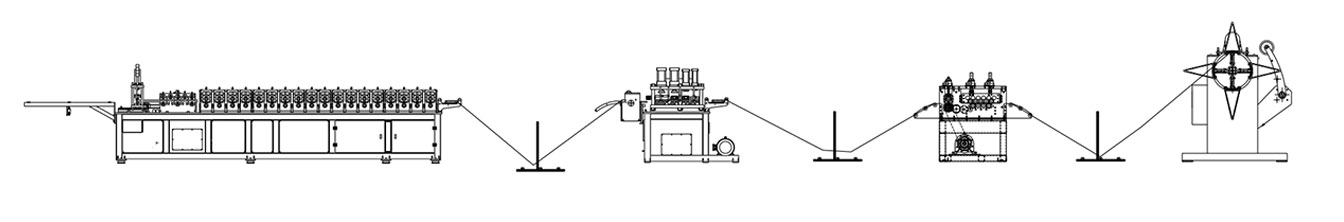

Automated Roll Forming Production Line Process

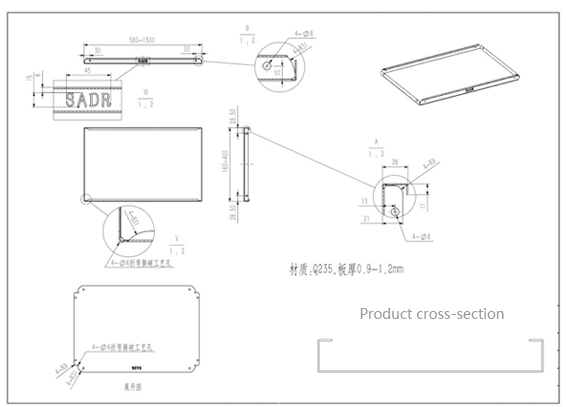

What type of shelf panels do you need?
We can customize according to your requirements based on the load-bearing capacity, dimensions, and specifications needed for shelving panels and back panels. Here is a showcase of customizations we have made for shelving factories.

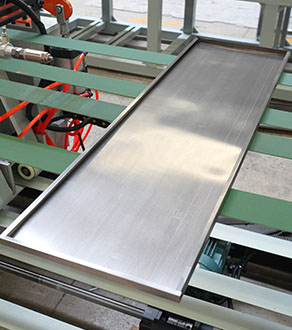

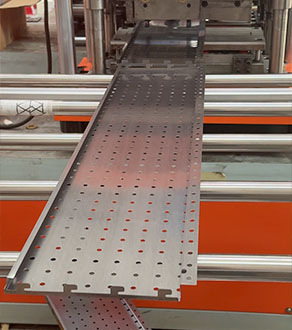

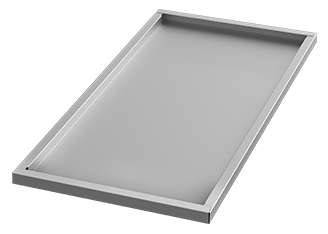

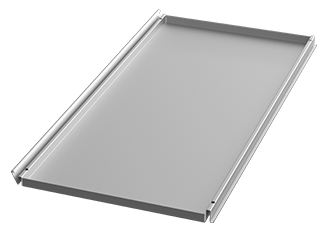

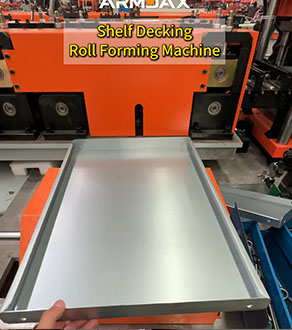

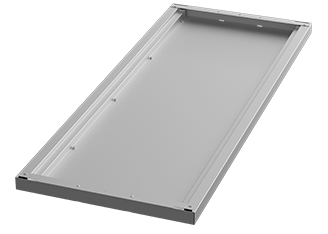

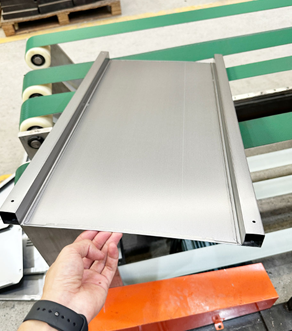

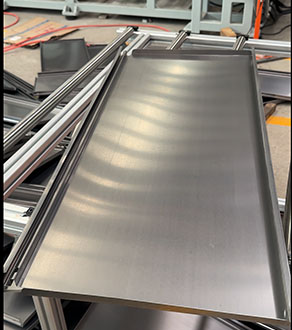

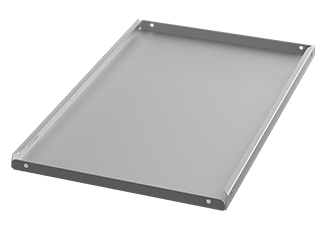

Finished products on shelf panels
Finished products on shelf panels
Finished products on shelf panels
Finished products on shelf panels
Finished products on shelf panels
Technology That Drives Your Competitive Edge
Our production lines are not just assemblies of standard parts; they are integrated systems featuring advanced technologies designed to maximize your productivity, flexibility, and profitability.

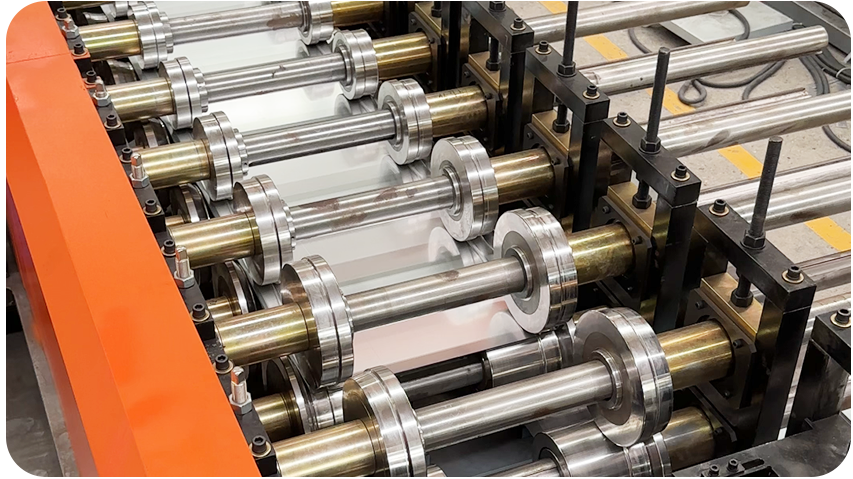

Servo-Driven Width Adjustment
The roll forming stands are equipped with a high-precision servo motor that automatically adjusts the horizontal position of the rollers. This allows the production line to switch between different shelf panel widths (e.g., 175mm, 400mm, 800mm, 1200mm) by simply entering new parameters on the HMI. No lengthy manual mechanical adjustments are required.
Fully Integrated Intelligent Control System
The entire line is controlled by a central PLC, managed through an intuitive HMI touch screen. All production parameters—including length, quantity, and punching patterns—are stored as recipes and can be recalled with a single touch. The system provides real-time diagnostics and production data tracking. Simplify operations and reduce reliance on highly skilled operators. The user-friendly interface minimizes the learning curve and reduces the chance of human error, ensuring consistent, high-quality output regardless of the operator. Faster job setup and real-time monitoring lead to increased overall equipment effectiveness (OEE).

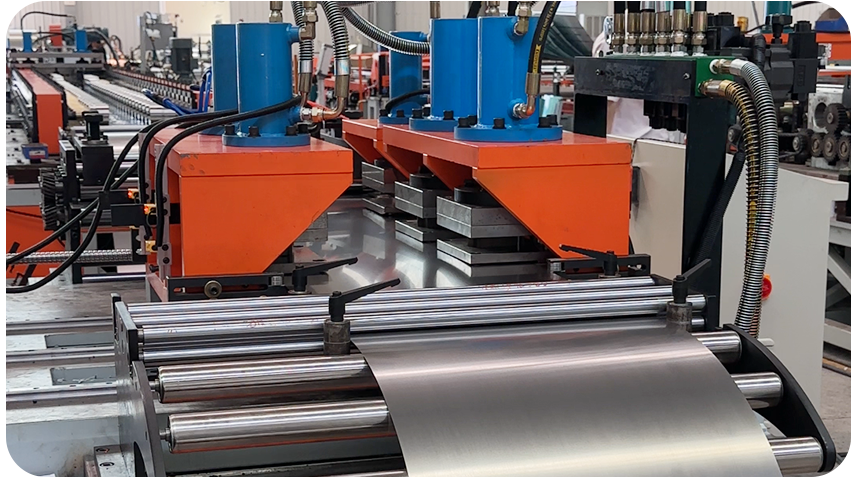

Perfect Hydraulic System
Armdax punch precise holes for clips and connectors directly in the forming process. Eliminate costly secondary operations. Hydraulic force delivers clean, burr-free holes in heavy-duty steel, ensuring perfect structural integrity. And Easily adapt punching patterns for different shelf models with quick tooling changes, which perfect for custom orders.
Engineered for Peak
Performance and Precision
Every component and parameter of our production line is designed and specified to deliver consistent, high-quality output.
| Product Material： | Material Thickness： |
| Product Width Range： | Margin of error： |
| Drive System： | Form speed： |
| Control System： | Roller material： |
Download Full Technical ProposalFrom Steel Coil to Shelf Panel
100,000 +
Success Cases
Finished column products
Finished column products Finished column products
Finished column products
Finished column products
Ready to Optimize Your Production?
FAQS
Q: Do you provide installation and training?
A：
Yes, we provide detailed installation manuals and video guides. We also offer optional overseas engineer dispatch for on-site installation and training, with all costs (travel, accommodation) quoted separately.
Q: What is your warranty policy?
A：
We provide warranty service within 1 year, for wearing parts, free replacement within half a year.Detailed warranty terms are provided in our contract.
