About Transportation & Automotive Parts Making Machine
We provide advanced roll forming solutions for the transportation sector, producing high-strength, lightweight structural components that meet stringent safety and performance standards. Our lines integrate advanced processes like in-line welding and punching to manufacture complex profiles for automotive, shipping, and rail applications with exceptional precision.
Precision Roll Forming Lines for Automotive Structural Components
Manufacture critical automotive parts like chassis rails, cross-members, and impact beams using our high-precision roll forming systems. We specialize in processing high-strength steels, ensuring tight tolerances and material integrity. Our automated solutions deliver the repeatability and quality essential for the automotive supply chain.

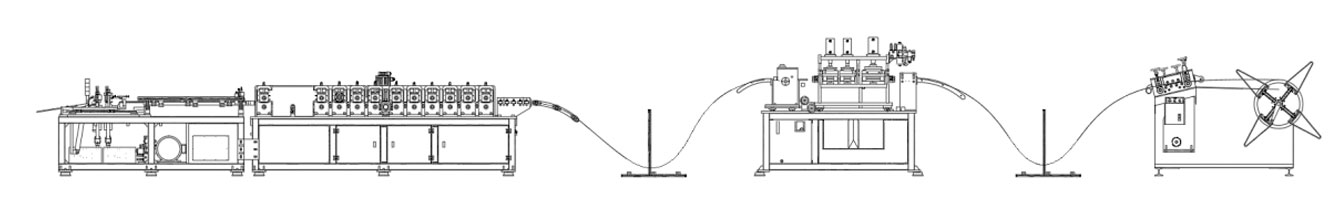

Automated Roll Forming Production Line Process
Automotive Structural Parts Production Cases
We can customize according to your requirements based on the load-bearing capacity, dimensions, and specifications needed for your prodcuts. Here is a showcase of customizations we have made for automotive structural parts factories.

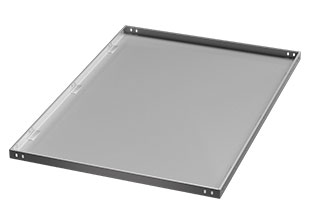

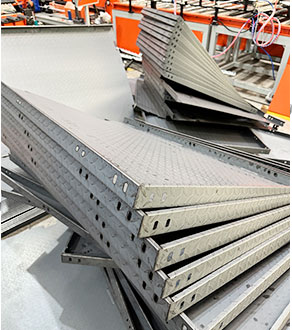

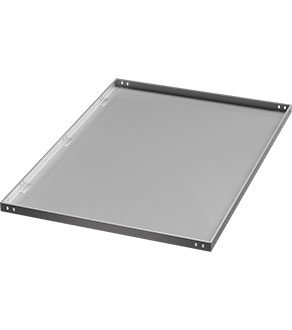

carriage floor case
Super market shelf upright

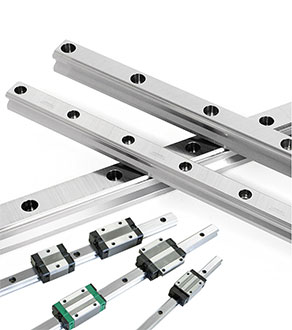

Car guide rail cases
Technology That Drives Your Competitive Edge
Our production lines are not just assemblies of standard parts; they are integrated systems featuring advanced technologies designed to maximize your productivity, flexibility, and profitability.

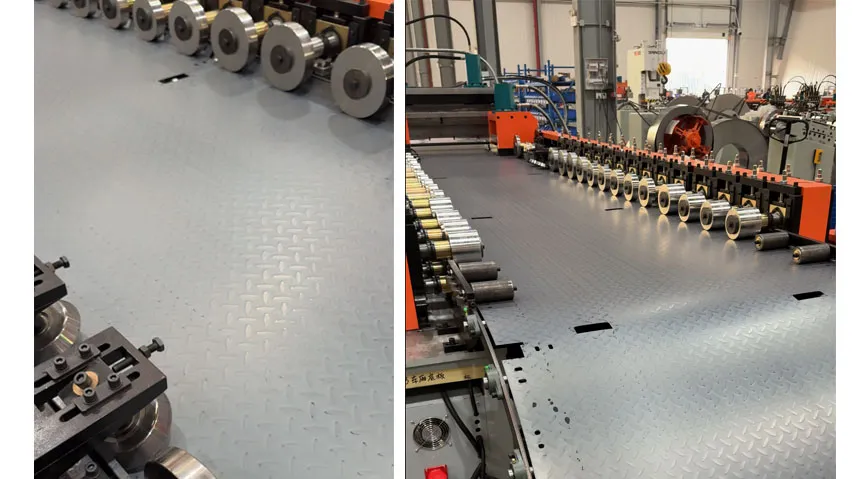

Precision Roll Forming System
Critical components are manufactured to the highest standards. Rollers are precision-machined on CNC lathes. Main shafts, are made from Cr12MoV alloy steel, tempered and precision-ground for maximum rigidity. The main frame side plates are machined from solid steel plates in a single setup on a CNC machining center to ensure perfect alignment. This robust construction guarantees the machine's longevity and reliability for years of demanding operation. According to the design drawings, implement the rolling process to achieve the preliminary product shape.

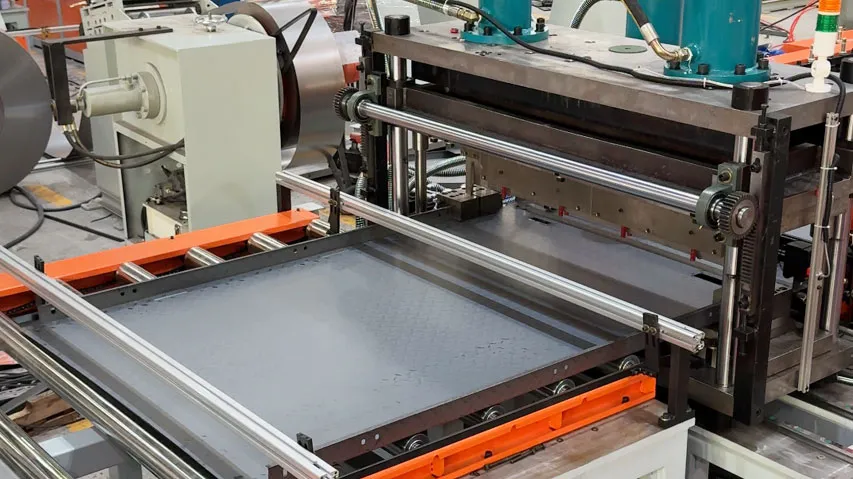

Fully Automated Cutting System
The cutting unit synchronizes its movement with the continuously advancing profile, making a clean, burr-free cut without stopping the production line. This eliminates bottlenecks and maximizes throughput. The system is seamlessly integrated with the roll former and pre-punching stations. It receives a digital signal to cut at the precise moment, creating a flawless, ready-to-use component in a single, automated sequence.

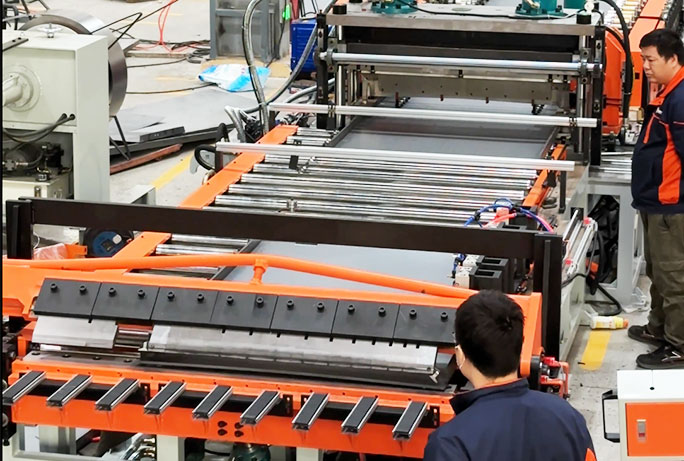

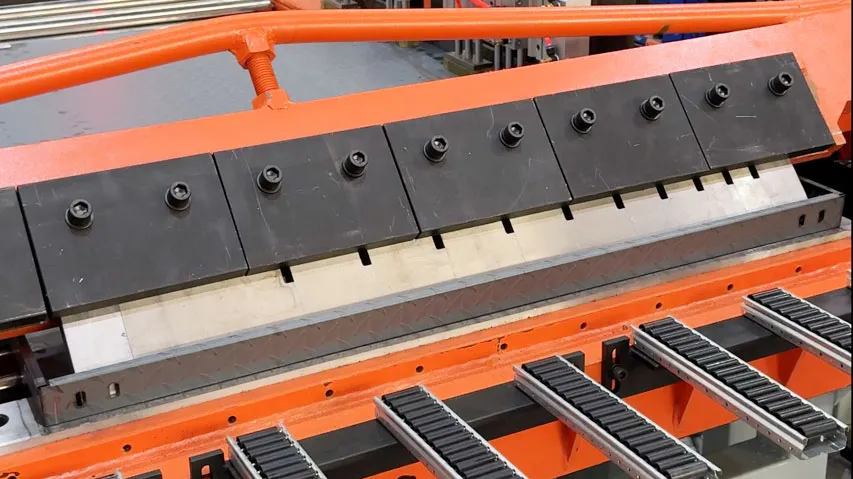

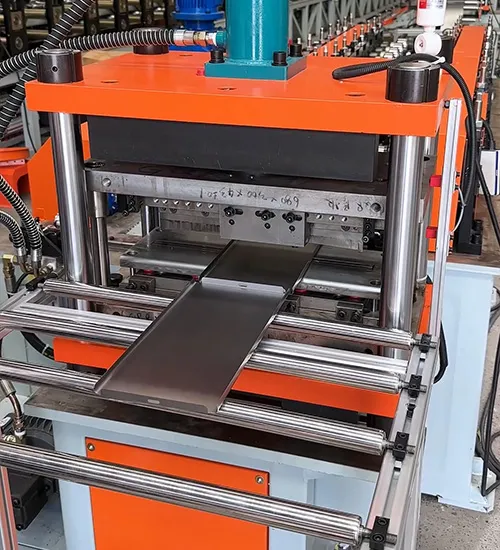

Automated Flanging For Carriage Floor Making Line
Integrated directly into the production line, the automated flanging unit precisely bends the edges of the continuously moving floor panel, creating a strong, uniform vertical rim in a single pass. The flanging operation occurs immediately after the main profile is formed and before cutting, ensuring a continuous, uninterrupted workflow without secondary handling.The formed flange acts as a robust reinforcement beam, significantly increasing the panel's load-bearing capacity and resistance to bending or deformation.
Engineered for Peak
Performance and Precision
Every component and parameter of our production line is designed and specified to deliver consistent, high-quality output.
| Product Material： | Material Thickness： |
| Product Width Range： | Margin of error： |
| Drive System： | Form speed： |
| Control System： | Roller material： |
Download Full Technical Proposal From Steel Coil to Automotive Structural Parts
100,000 +
Success Cases
Finished column products
Finished column products Finished column products
Finished column products
Finished column products
Ready to Optimize Your Production?
FAQS
Q: Can your machine form both steel and aluminum?
A：
Yes, most of our standard models can form both galvanized steel and aluminum coils. The produce materials with thicknesses ranging from 0.2mm to 5mm,and have the thickness adjustment . Please consult our engineers for your specific material requirements
Q: What is the maximum speed and output of your machines?
A：
Armdax roll forming machines have a line max speed up to 35 meters per minute. The actual output depends on the profile complexity and operator efficiency.
Q: What kind of control system do you use?
A：
We use internationally renowned PLC systems (like Siemens or Mitsubishi) with a user-friendly touchscreen interface. This allows for precise control over speed, length, and production count.
Q: Do you provide installation and training?
A：
Yes, we provide detailed installation manuals and video guides. We also offer optional overseas engineer dispatch for on-site installation and training, with all costs (travel, accommodation) quoted separately.
